Stainless Gate Valve

Stainless Gate Valve

Stainless Gate Valve
Stainless Gate Valve
Model：TYT-392
Stainless steel
Gate Valve Ips
1/2”~ 4”
Download Add to inquiry
Specification

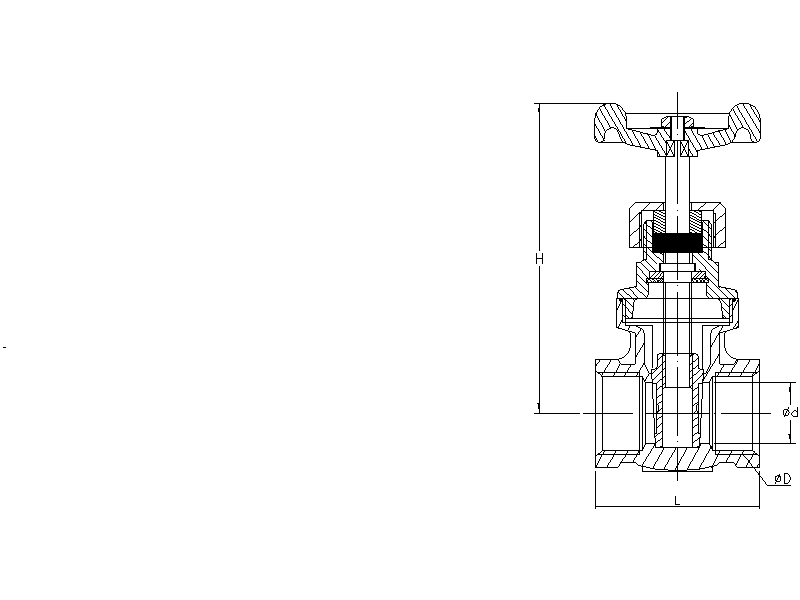

SIZE ØD H L  Ød
1/2"

G  1/2

 90.0 51.0 13.0
3/4" G  3/4 97.0 53.0 19.5
1" G    1 110.0 60.5 25.5
11/4" G 11/4 135.0 68.0 32.5
11/2" G 11/2 137.0 72.5 38.0
2" G    2 164.0 81.5 51.0
21/2" G 21/2 214.0 97.0 65.0
3" G    3 231.0 110.5 76.5
4" G    4 273.0 131.0 96.5

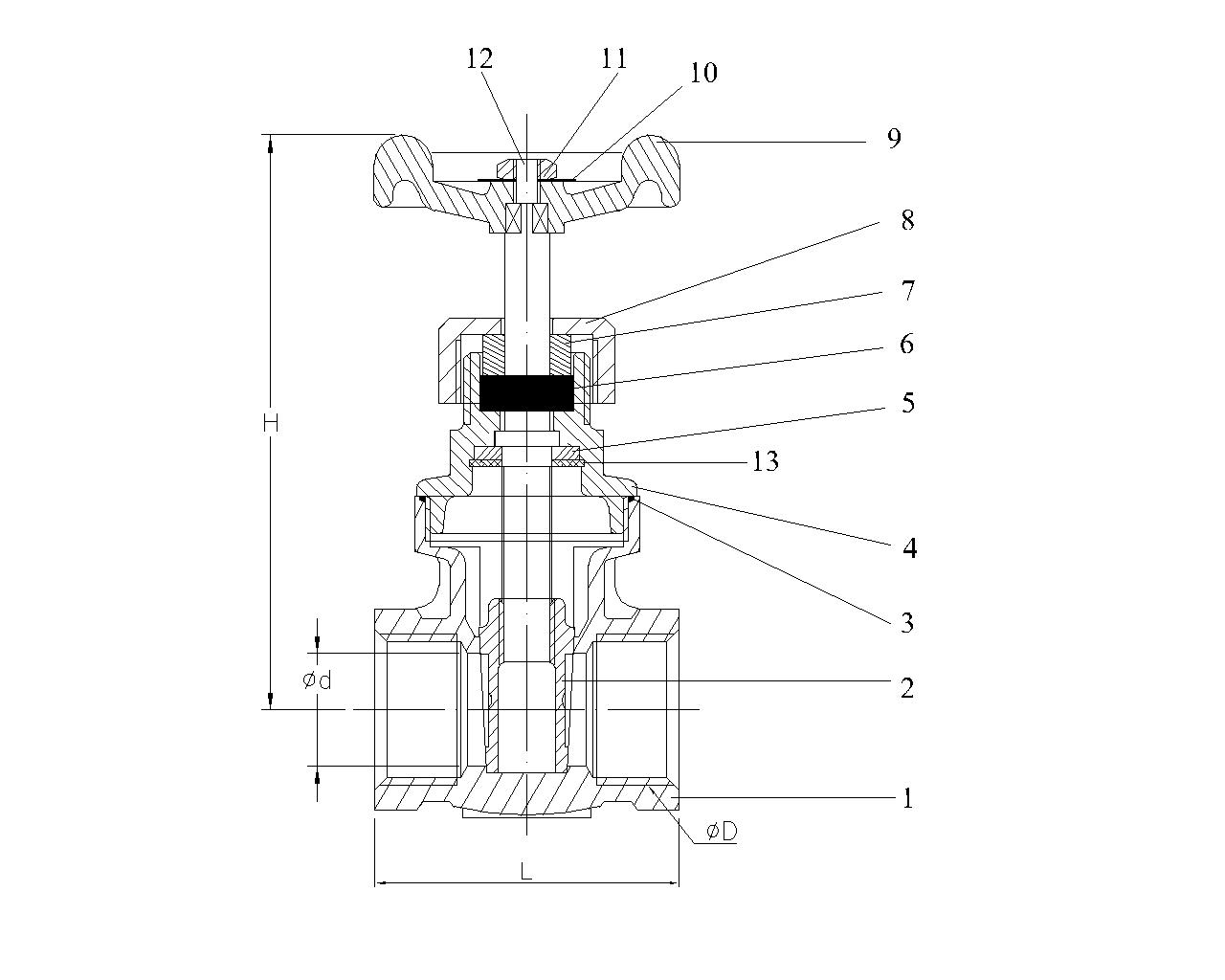

PART MATERIAL
BODY STAINLESS
DISC STAINLESS
BONNET STAINLESS
HAND WHEEL ALUMINUM ALLOY
STEM STAINLESS
