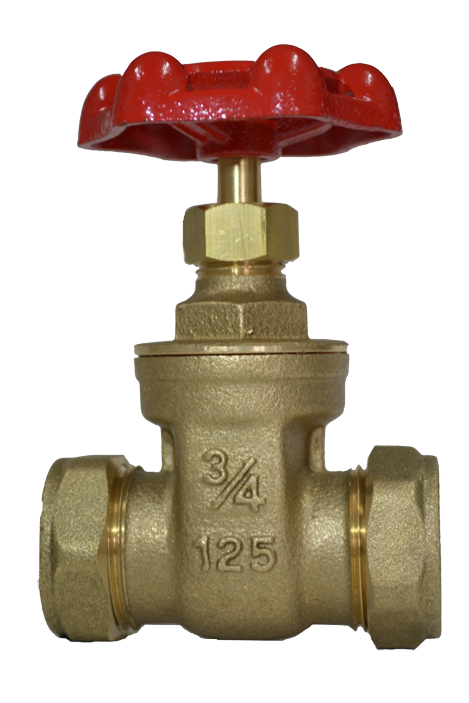

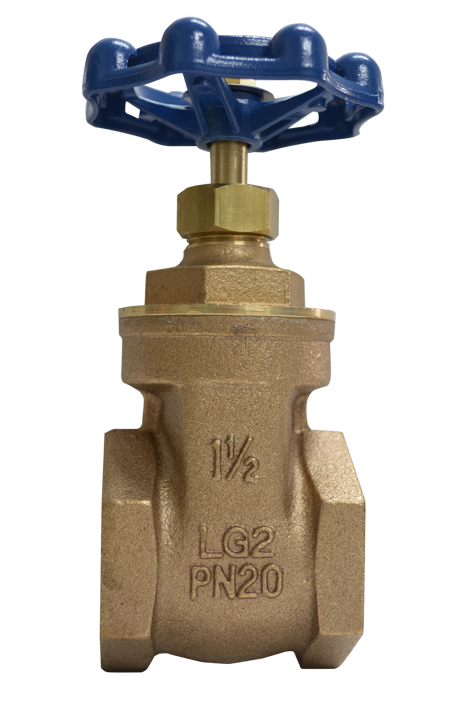

Brass Gate Valve
Introduction
The Brass Gate Valve is a must-have component of any plumbing system. It is manufactured by Taiwan with the highest quality standards and is designed with a strong and durable brass body and gate. It is also coated with a corrosion-resistant coating and is available in various sizes and connection types. The threaded connection allows for a secure and easy installation. The brass gate valve is suitable for both domestic and commercial applications and is designed to provide a reliable and efficient performance with minimal maintenance costs. It is cost-effective and is a great choice for a wide range of applications. With its robust design and reliable performance, the brass gate valve is sure to provide years of reliable service.
Specification
|

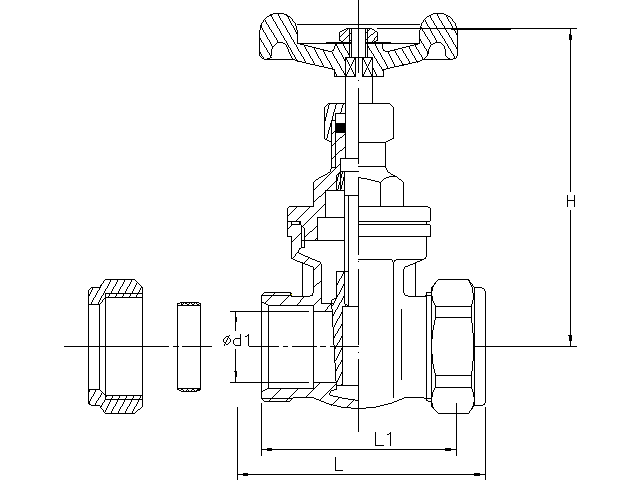

SIZE |
H | L | L1 | Ød1 |
| 1/2" | 72.0 | 63.5 | 47.0 | 13.5 |
| 3/4" | 84.0 | 70.5 | 53.0 | 19.5 |
| 1" | 94.0 | 76.0 | 57.0 | 24.5 |
| 11/4" | 108.0 | 93.0 | 71.0 | 30.5 |
| 11/2" | 123.0 | 100.0 | 79.0 | 36.5 |
| 2" | 141.0 | 110.0 | 84.0 | 45.0 |
| PART | MATERIAL |
| BODY | CAST BRASS |
| DISC | CAST BRASS |
| BONNET | CAST BRASS |
| HAND WHEEL | ALUMINUM ALLOY |
| STEM | BRASS ROD |
| SOLDER RING | COPPER THBE |
| NUT | FORGING BRASS |
