Goodyear Valves Works Corp.

Brass Cxc Gate Valve

Brass Gate Valve, TYT-3015
Brass Gate Valve, TYT-3015
Model:TYT-301
Brass
Gate Valve cxc
1/2”~ 2”
Add to inquiry
Introduction

Brass Gate Valve is an essential part of the plumbing system. It is used to control the flow of liquids, gases and vapours. It is manufactured by Taiwan with the highest quality standards. It is designed with a strong and durable brass body and gate to ensure a long service life. The gate valve comes with a corrosion-resistant coating and is available in various sizes and connection types. The threaded connection allows for a secure connection and easy installation. The brass gate valve is suitable for both domestic and commercial applications. It is designed to provide a reliable and efficient performance with minimal maintenance. It is also cost-effective and can be used in a variety of applications. With its robust design and reliable performance, the brass gate valve is sure to provide years of reliable service.

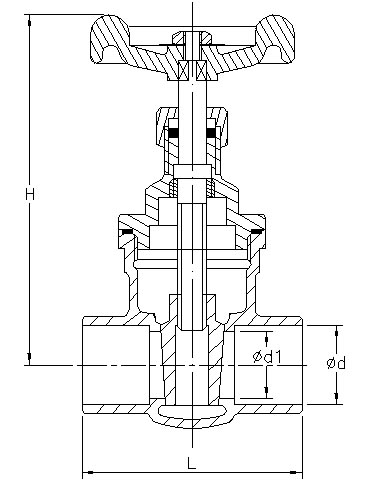

Specification
size Ød Ød1 H L
1/2" 15.94 13.5 73.0 47.0
3/4" 22.30 19.5 84.0 61.5
1" 28.66 24.5 94.0 70.5
11/4" 35.03 30.5 108.0 76.0
11/2" 41.39 36.5 123.0 85.0
2" 54.10 45.0 138.0 105.0

PART MATERIAL
BODY CAST BRASS
DISC CAST BRASS
BONNET CAST BRASS
HAND WHEEL ALUMINUM ALLOY
STEM BRASS ROD
