Bronze Gate Valve

Bronze Gate Valve

Brass Gate Valve, TYT-353
Brass Gate Valve, TYT-353
Model:TYT-353
Bronze
IPS Gate Valve
1/2”~ 4”
Add to inquiry
Introduction

The Brass Gate Valve is a must-have component of any plumbing system. It is made in Taiwan with the highest quality standards and features a strong and durable brass body and gate to ensure a long service life. It is coated with a corrosion-resistant coating and comes in various sizes and connection types. The threaded connection allows for a secure and easy installation. The brass gate valve is suitable for both domestic and commercial applications and is designed to provide reliable and efficient performance with minimal maintenance costs. It is cost-effective and is a great choice for a wide range of applications. With its robust design and reliable performance, the brass gate valve is sure to provide years of reliable service.

Specification

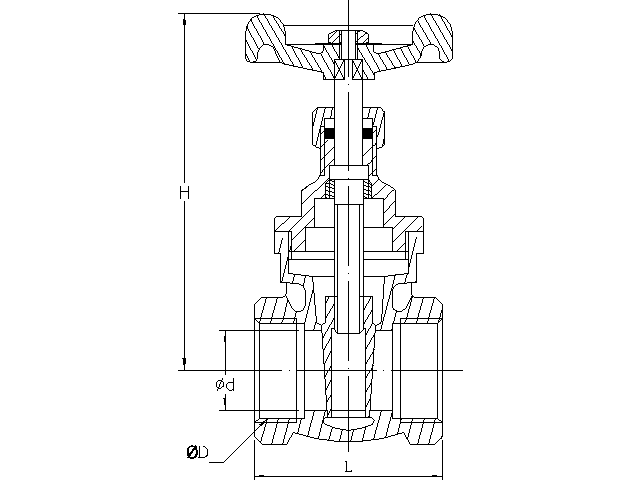

SIZE ØD H L Ød
1/2" G  1/2 73.0 43.5 13.5
3/4" G  3/4 84.0 48.5 19.5
1" G    1 95.0 54.5 24.5
11/4" G 11/4 108.0 59.0 31.5
11/2" G 11/2 123.0 61.0 36.5
2" G    2 142.0 70.0 46.5
21/2" G 21/2 178.0 89.0 61.0
3" G    3 207.0 101.0 74.0
4" G    4 248.0 118.5 94.5





PART MATERIAL
BODY CAST BRONZE
DISC CAST BRONZE
BONNET CAST BRONZE
HAND WHEEL ALUMINUM ALLOY
STEM BRONZE ROD
