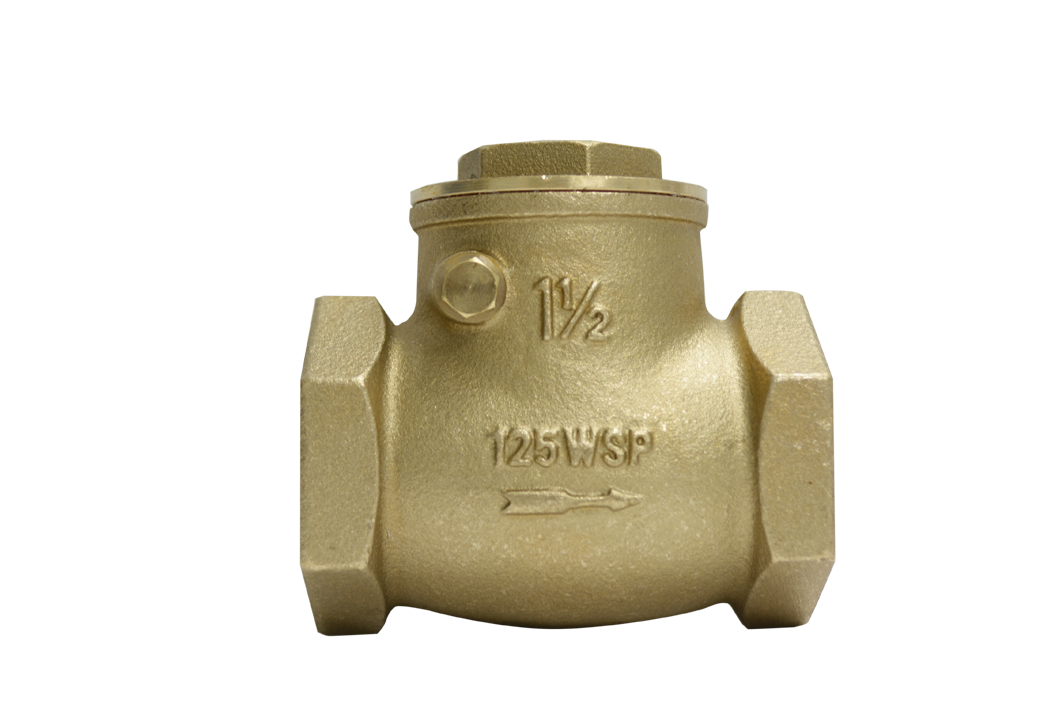

Model:TYT-406
Brass
Swing Check Valve
1/2”~ 4”
Add to inquiry
Introduction

Brass check valve is a kind of valve that is used to prevent backflow in the system. It is a check valve consisting of a valve body, a valve flap, a valve stem, and a sealing ring. Brass check valves are widely used in water supply and drainage, fire protection, heating and cooling system, gas supply, chemical industry, and other industries. Goodyear Valves Works Corp is a professional manufacturer of brass check valves in Taiwan. The company has more than 40 years of experience in valves manufacturing and its products are widely used in the domestic and international markets. Goodyear Valves Works Corp brass check valve is well known for its high quality and reliable performance. The valve body is made of top quality brass and is corrosion resistant. The valve flap is equipped with a strong spring that allows it to close automatically when the valve is not in use. The valve stem is made of stainless steel, ensuring long service life. The sealing ring is made of PTFE, providing a tight seal and preventing backflow. The valve is also easy to install and maintain. Goodyear Valves Works Corp brass check valves are suitable for different types of systems and can be used in a variety of applications. The valves can be used in water supply and drainage, fire protection, heating and cooling systems, gas supply, chemical industry, and other industries. The valves have been tested and certified to meet the highest standards of quality and safety. All in all, Goodyear Valves Works Corp brass check valves are an ideal choice for any system in need of reliable and safe valve solutions. The valves are durable, can withstand high pressure, and ensure a tight seal. They are also easy to install and maintain and are backed by Goodyear Valves Works Corp's commitment to quality and customer service.

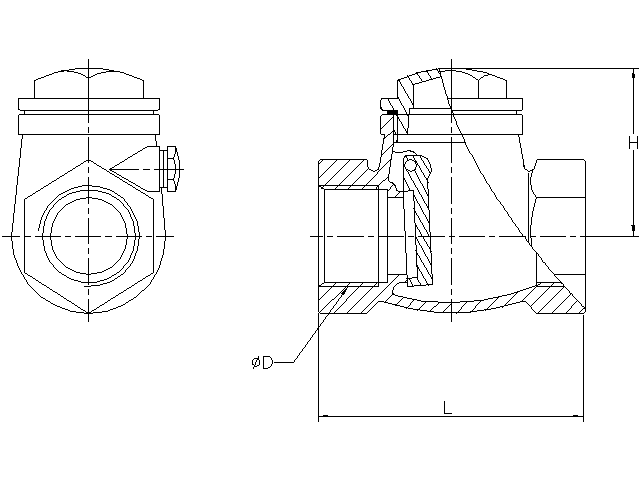

Specification
SIZE ØD H L
1/2" PT  1/2 33.0 55.0
3/4" PT  3/4 40.0 60.0
1" PT    1 44.0 68.0
11/4" PT 11/4 52.0 78.0
11/2" PT 11/2 58.0 90.0
2" PT    2 67.0 105.0
21/2" PT 21/2 75.0 131.0
3" PT    3 83.0 142.0
4" PT    4 99.0 169.0



PART MATERIAL
BODY CAST BRASS
DISC CAST BRASS
BONNET CAST BRASS
PIN BRASS ROD
SCREW BRASS ROD
